Modifying and deleting an as-set object

• Modifying an as-set object

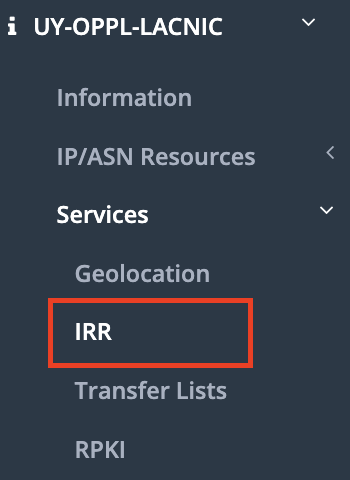

Select the [Services / IRR] option on the context menu.

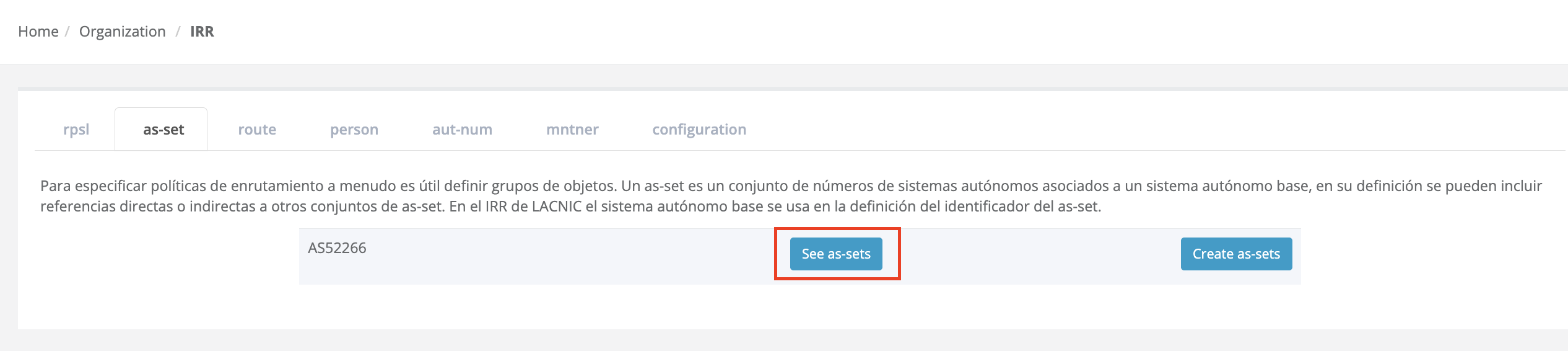

Go to the [as-set] tab and select [View as-sets]. The system will show a list of all as-set objects:

Then, select the [Edit] button for the as-set object you wish to modify:

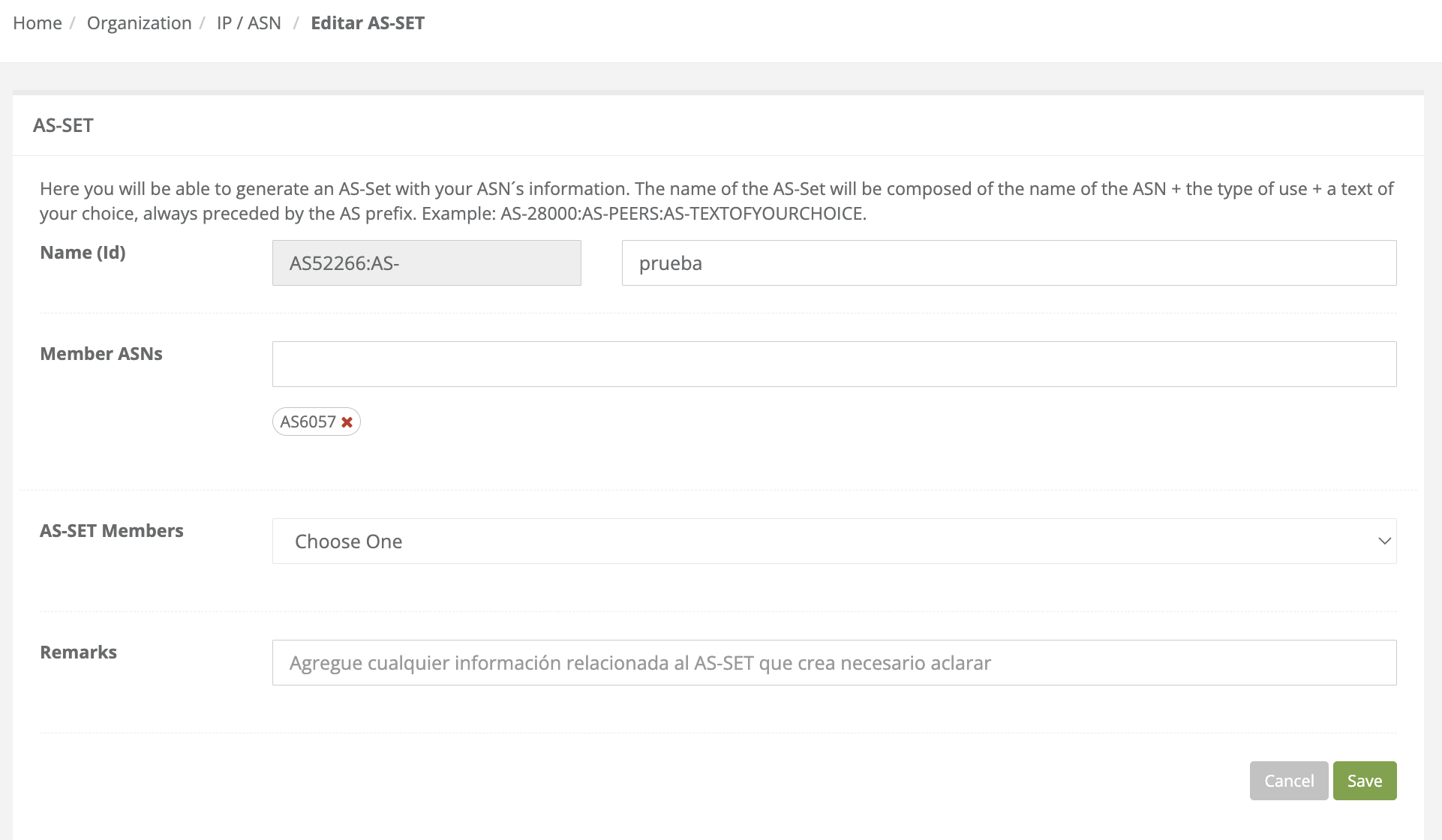

Both options will take you to the form where you can edit the selected as-set object.

The following information can be edited:

• Name (ID)
• ASN Members
• AS-SET Members
• Remarks

Once you update the information, click [Save] to confirm the changes and complete the process.

• Deleting an as-set object

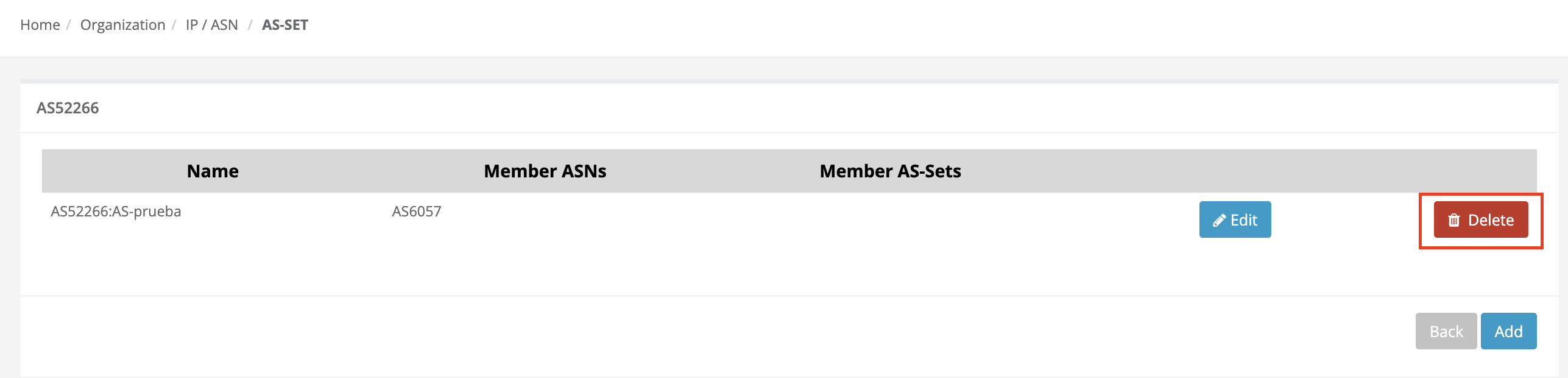

To delete an as-set, go to the as-set list and select the [Delete] button of the as-set you wish to delete.

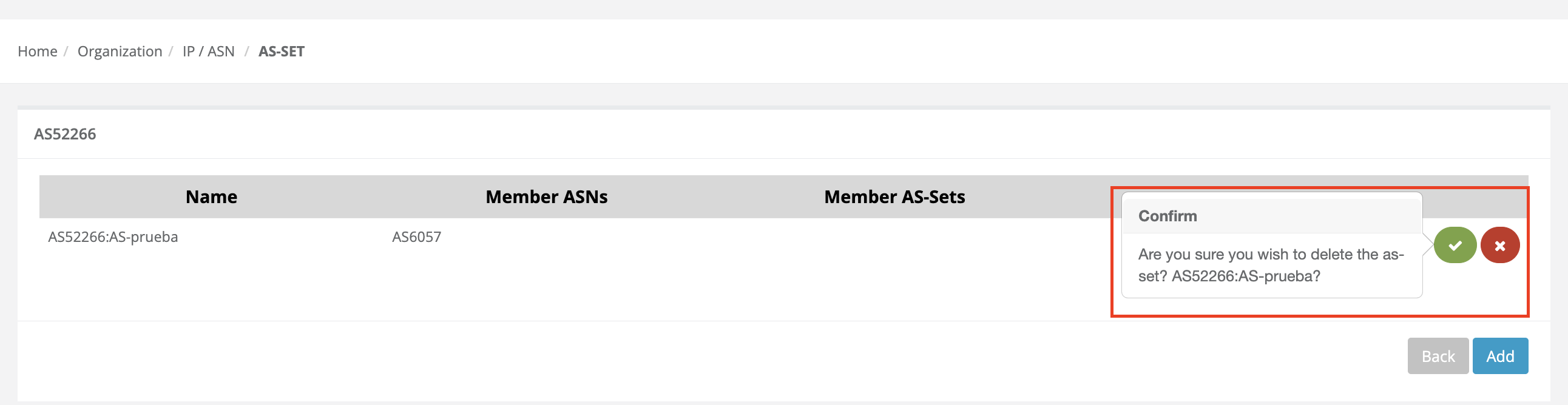

The system will display two options: Complete or Cancel. It will also display a confirmation message with additional information on the as-set objects that will be affected once the selected as-set is deleted:

To complete the operation and delete the as-set object, click .

To cancel the operation, click .

*Note: This operation cannot be undone.
