Creating an as-set object

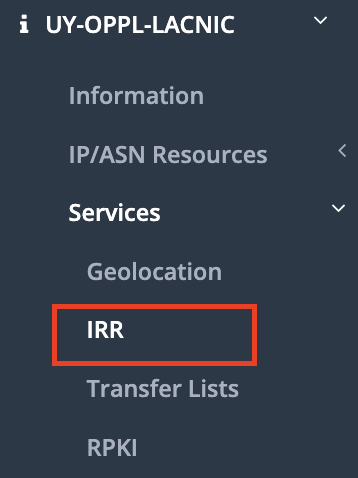

The [Services / IRR] option in the organization's context menu will allow you to access the panel where you can create as-set objects.

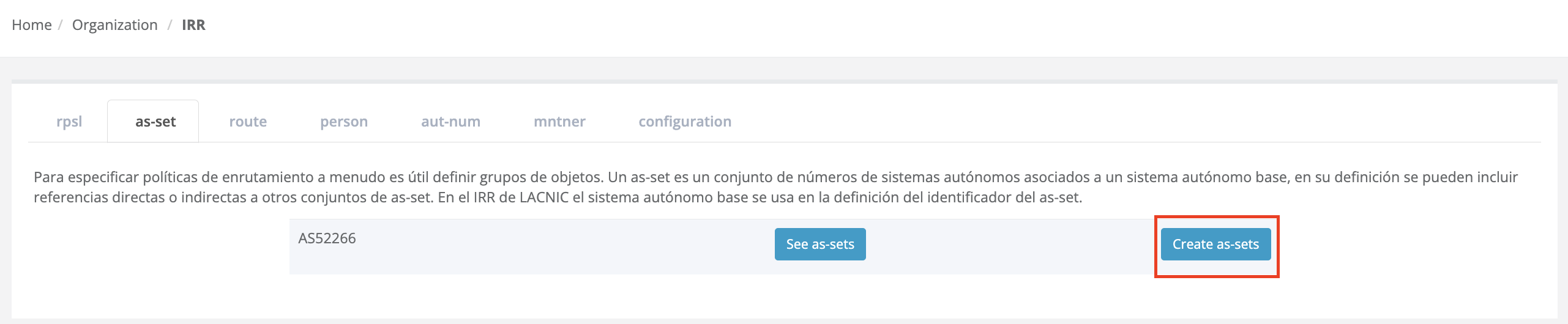

Select the [AS-SETs] button to access the panel for managing the as-set objects of the selected Autonomous System. Select the [Create as-sets] button located to the right of the list of autonomous systems:

You must complete the form with the required information. To create a new as-set, the following data is required:

• Name (ID)
• ASN Members
• AS-SET Members
• Remarks

*Note: The name of the as-set object must be a unique text comprised of the name of the AS plus a description preceded by AS-. Example: AS28000:AS-DESCRIPTION.

Once you enter the required information for the as-set, click [Save] to complete the process.
